Top 5 Best Door Hinges for Heavy Doors and Their Key Features

The best door hinges for heavy doors provide essential support and smooth movement. Proper hinge selection prevents door sagging and ensures long-term performance. Many builders also consider a strap hinge for added strength. Heavy doors demand reliable hinges to maintain safety and function in demanding environments.

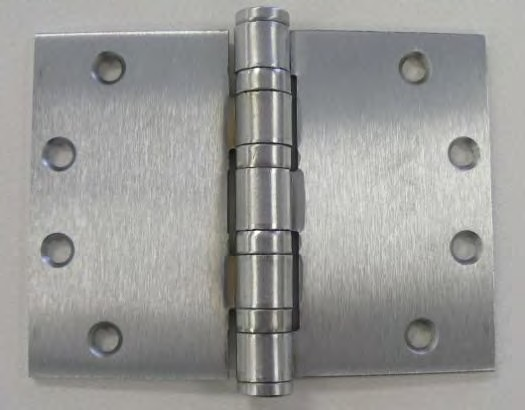

Ball Bearing Door Hinge: Best Door Hinges for Heavy Doors

Type and Material

Ball bearing door hinges stand out as one of the best door hinges for heavy doors due to their robust construction. Manufacturers typically use heavy-gauge steel or stainless steel for these

hinges. Stainless steel resists rust and corrosion, making it ideal for exterior or humid environments. The following table highlights common materials and their properties:

Hinge thickness usually ranges from 0.118" to 0.126", providing extra strength for heavy-duty use.

Load Capacity

Ball bearing door hinges support significant weight. Three hinges can hold over 260 lbs, while four hinges can manage up to 440 lbs. Some models, such as the 1000-pound and 2000-pound versions, measure 5" x 5" and 6" x 6" respectively, making them suitable for extremely heavy doors.

Key Features

·Ball bearings between hinge knuckles reduce friction.

·Interleaved steel bearing races minimize metal-on-metal contact.

·Central pin design increases stability.

·Smoother and quieter door swings.

Benefits

Ideal Use Cases

Ball bearing door hinges serve as the best door hinges for heavy doors in various settings:

·Residential buildings

·Commercial properties

·Industrial facilities

These hinges ensure smooth operation, long-lasting durability, and enhanced security for heavy doors.

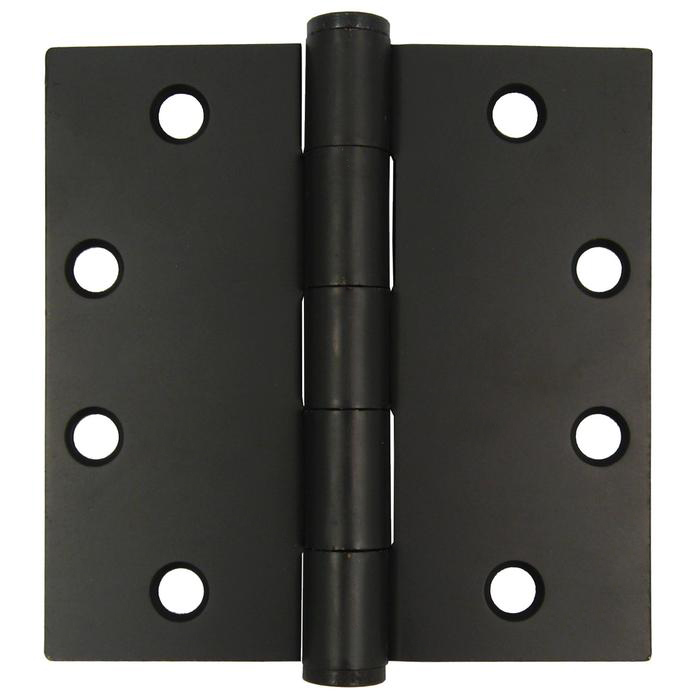

Heavy Duty Butt Hinge: Best Door Hinges for Heavy Doors

Type and Material

Manufacturers design heavy duty butt hinges with strength and longevity in mind. They use a range of robust materials to ensure reliable performance under demanding conditions.

·Carbon steel

·Stainless steel

·Hardened alloy steel pins

·Thrust bearings

·Aluminum

·Brass

·Bronze

·Copper

·Galvanized steel

·Titanium

These materials provide excellent resistance to wear, corrosion, and environmental stress. Stainless steel and brass stand out for their durability and corrosion resistance, making them popular choices for both indoor and outdoor applications.

Load Capacity

Heavy duty butt hinges support substantial weight. For example, the TECTUS TE 640 3D hinge can handle up to 440 lbs, making it suitable for large, heavy doors. The load capacity depends on several factors, including hinge design, leaf size, pin diameter, material strength, number of hinges used, mounting method, and usage conditions.

Key Features

·Reinforced construction with thick leaves and strong pins

·Advanced bearing mechanisms for smooth, quiet operation

·Corrosion-resistant finishes

·Easy adjustability for precise alignment

These features allow heavy duty butt hinges to endure frequent use and high stress without losing functionality.

Benefits

Heavy duty butt hinges also offer excellent resistance to corrosion and wear, making them a reliable choice for the best door hinges in demanding environments.

Ideal Use Cases

Heavy duty butt hinges serve a wide range of applications:

1.Gates and security fences in commercial and residential properties

2.Commercial doors in shopping malls and office buildings

3.Industrial equipment access panels

4.Barn and shed doors in agricultural settings

5.Shipping container doors

These hinges provide the strength and stability required for heavy doors in both commercial and residential settings.

Continuous (Piano) Hinge: Best Door Hinges for Heavy Doors

Type and Material

Continuous hinges, often called piano hinges, extend the full length of the door. Manufacturers use strong materials to ensure these hinges can handle heavy loads. The most common options include stainless steel and aluminum. Stainless steel models come in 14 or 16 gauge thickness, offering both self-closing and non-self-closing varieties. Aluminum versions provide a lightweight alternative for less demanding applications.

Load Capacity

Continuous hinges distribute weight evenly along the entire door edge. A standard 24-inch hinge supports up to 60 pounds, or about 2.5 pounds per inch. Some plastic piano hinges can handle up to 100 pounds per inch, but metal versions remain the top choice for heavy-duty needs.

Key Features

Continuous hinges offer several features that make them one of the best door hinges for heavy doors:

·Durable construction with corrosion-resistant alloys

·Full-length design for enhanced security

·Smooth, consistent operation that prevents door sag

·Resistance to harsh weather and high humidity

Benefits

Ideal Use Cases

1.Large, heavy doors in industrial settings such as warehouses and loading docks

2.High-traffic doors in educational institutions, including auditoriums and gymnasiums

These hinges provide reliable performance and long-term durability, making them a top choice among the best door hinges for demanding environments.

Spring Loaded Hinge: Best Door Hinges for Heavy Doors

Type and Material

Spring loaded hinges use a built-in spring mechanism to control door movement. Manufacturers select materials that offer strength and resistance to wear. The most common materials include stainless steel, brass, bronze, and zinc. Stainless steel provides excellent corrosion resistance and durability, making it ideal for outdoor and commercial use. Brass offers a classic look and moderate resistance to corrosion, while bronze combines strength with weather resistance. Zinc is affordable and works well for lighter applications.

Load Capacity

Spring loaded hinges for heavy doors support a wide range of weights.

·Heavy-duty models handle doors up to 200 lb in high-frequency environments.

·Medium-frequency doors can use hinges rated for around 400 lb.

·Low-frequency doors may use hinges that support up to 600 lb.

Note: Always check the manufacturer’s specifications to match the hinge to the door’s weight and usage.

Key Features

Spring loaded hinges offer several features that make them one of the best door hinges for heavy doors.

Benefits

Spring loaded hinges provide several advantages in demanding environments.

Ideal Use Cases

Spring loaded hinges work well in locations where doors must close automatically or withstand frequent use.

1.Commercial entryways and exit doors

2.Fire doors in public buildings

3.Industrial gates and access panels

4.Residential doors that require self-closing features

5.Outdoor gates exposed to weather

These hinges combine strength, reliability, and convenience, making them a top contender among the best door hinges for heavy doors.

Pivot Hinge: Best Door Hinges for Heavy Doors

Type and Material

Pivot hinges use a central pivot point at the top and bottom of the door, allowing it to rotate smoothly. Manufacturers select materials that offer strength and corrosion resistance for heavy-duty applications. The following table highlights common materials and their characteristics:

Load Capacity

Pivot hinges excel in supporting extremely heavy doors. Some heavy-duty models, such as a 10" x 6" carbon or mild steel bolt-on pivot hinge, can handle loads up to 20,000 lbs. This high load-bearing capacity makes them a top choice for demanding architectural projects.

·High load-bearing capacity for heavy-duty applications.

Key Features

Pivot hinges often use stainless steel or brass, guaranteeing unmatched endurance and long-lasting performance.

Benefits

·Pivot hinges enhance aesthetics with a clean, modern look, especially when concealed.

·They allow doors to glide open effortlessly, improving user experience for oversized doors.

·These hinges provide better support, preventing uneven gaps and misalignment.

·The unique design adds security, making it difficult for intruders to remove the door.

Tip: Pivot hinges are meticulously engineered for exceptional durability and reliability, even under frequent use.

Ideal Use Cases

Pivot doors remain popular in luxury home design, adding elegance and style. They create clean, modern aesthetics and suit both internal and external applications.

Comparison Table of Best Door Hinges

Strengths and Weaknesses

Selecting the right hinge type depends on understanding both strengths and weaknesses. The following table compares common materials used in heavy-duty hinges:

When comparing load capacities, different hinge types offer unique advantages:

·Heavy-duty butt hinges support doors weighing up to 200 pounds.

·Continuous (piano) hinges can support doors exceeding 450 pounds.

·Pivot hinges provide top and bottom support for extremely heavy doors.

Note: Stainless steel and continuous hinges often deliver the best performance in harsh or high-traffic environments.

Best Applications

Each hinge type fits specific settings. The table below outlines where each hinge excels:

Choosing the best door hinges ensures reliable operation and long-term durability for any heavy door, whether in a home, business, or industrial facility.

Tips for Choosing and Installing Best Door Hinges for Heavy Doors

Selection Tips

Selecting the right hinge ensures a heavy door operates safely and smoothly. Several important factors guide this decision:

1.Door Weight & Size: Heavier and larger doors require hinges that can handle the load. Always check that the hinge’s weight rating exceeds the door’s actual weight.

2.Frequency of Use: Doors in high-traffic areas need durable hinges. Ball bearing hinges often provide smoother operation and last longer under frequent use.

3.Interior vs. Exterior Application: Exterior doors face weather and moisture. Stainless steel hinges resist rust and corrosion, making them ideal for outdoor use.

4.Aesthetic Preferences: The hinge style should match the door’s appearance. Concealed hinges create a modern look, while decorative finishes can enhance traditional doors.

5.Security Requirements: Exterior doors benefit from hinges with security features, such as non-removable pins, to prevent tampering.

Tip: Always review the manufacturer’s specifications to confirm compatibility with your door’s size and intended use.

Installation Advice

Proper installation extends the life of even the best door hinges. Follow these guidelines for optimal results:

·Use the correct number of hinges. Heavy doors often need at least three, sometimes four, to distribute weight evenly.

·Align hinges precisely. Misalignment causes binding and premature wear.

·Pre-drill screw holes to prevent wood splitting and ensure a secure fit.

·Tighten all screws firmly, but avoid over-tightening, which can strip the holes.

·Lubricate moving parts after installation for smooth, quiet operation.

A careful approach during selection and installation helps heavy doors perform reliably for years.

Selecting the best door hinges ensures heavy doors operate safely and smoothly. Each hinge type offers unique benefits. Users should measure their door, review manufacturer specifications, and follow installation guidelines.

·Match hinge type to door weight and usage for optimal performance.

FAQ

What is the best hinge material for exterior heavy doors?

Stainless steel resists rust and corrosion. It provides long-lasting performance for exterior heavy doors in harsh weather conditions.

How many hinges should support a heavy door?

·Three hinges support most heavy doors.

·Four hinges provide extra stability for oversized or high-traffic doors.

Can you replace standard hinges with heavy-duty hinges?

Yes. Heavy-duty hinges fit most doors with standard hinge cutouts. Always check the door’s thickness and weight before replacing.
