Why Modern Homes Demand Upgraded Security Hinges

An expensive lock becomes useless if a burglar can simply remove the door. Intruders exploit standard hinges as a critical weak point, bypassing locks entirely. Upgrading to a security hinge is the essential reinforcement. This upgrade to secure residential hinges prevents the door from being lifted off its frame.

What Makes a Standard Hinge a Security Risk?

Many homeowners invest in advanced locks but overlook the simple hardware holding the door in place. Standard hinges often contain critical design flaws that intruders readily exploit. Understanding these weaknesses is the first step toward securing your home's primary entry points.

The Exposed Pin Vulnerability

The most significant flaw in many standard hinges is the exposed pin, especially on outward-swinging doors. This design creates a simple path for forced entry.

An intruder can use a basic tool, like a hammer and punch, to tap the hinge pin upward and out of the hinge knuckles. Once they remove the pins, they can lift the entire door off its frame, completely bypassing the lock. This 'door hinge attack' is a common backup method when a lock proves too difficult to pick.

This vulnerability makes even the most robust deadbolt useless, as the door itself becomes the point of failure.

Weak Materials and Short Screws

Beyond the pin, the very construction of standard hinges presents a security problem. Manufacturers often use economical materials like zinc alloy or basic steel for residential hinges. These materials can bend or break under the force of a determined attack.

An even more common and critical issue is the hardware used for installation.

• Short Screws: Most doors come installed with short screws, often less than an inch long. These screws only anchor into the thin wooden door jamb, not the solid wall stud behind it.

• Forced Entry: A strong kick or shoulder strike can easily splinter the jamb, ripping the hinges and the door right out of the frame.

Replacing standard hinges with a robust security hinge anchored by long screws is essential for true door integrity.

The Anatomy of a Superior Security Hinge

Upgrading to a security hinge involves more than just buying a heavier piece of metal. Superior hinges possess specific design features that directly counter the vulnerabilities of standard hardware. Understanding these components allows homeowners to make an informed choice for reinforcing their entryways.

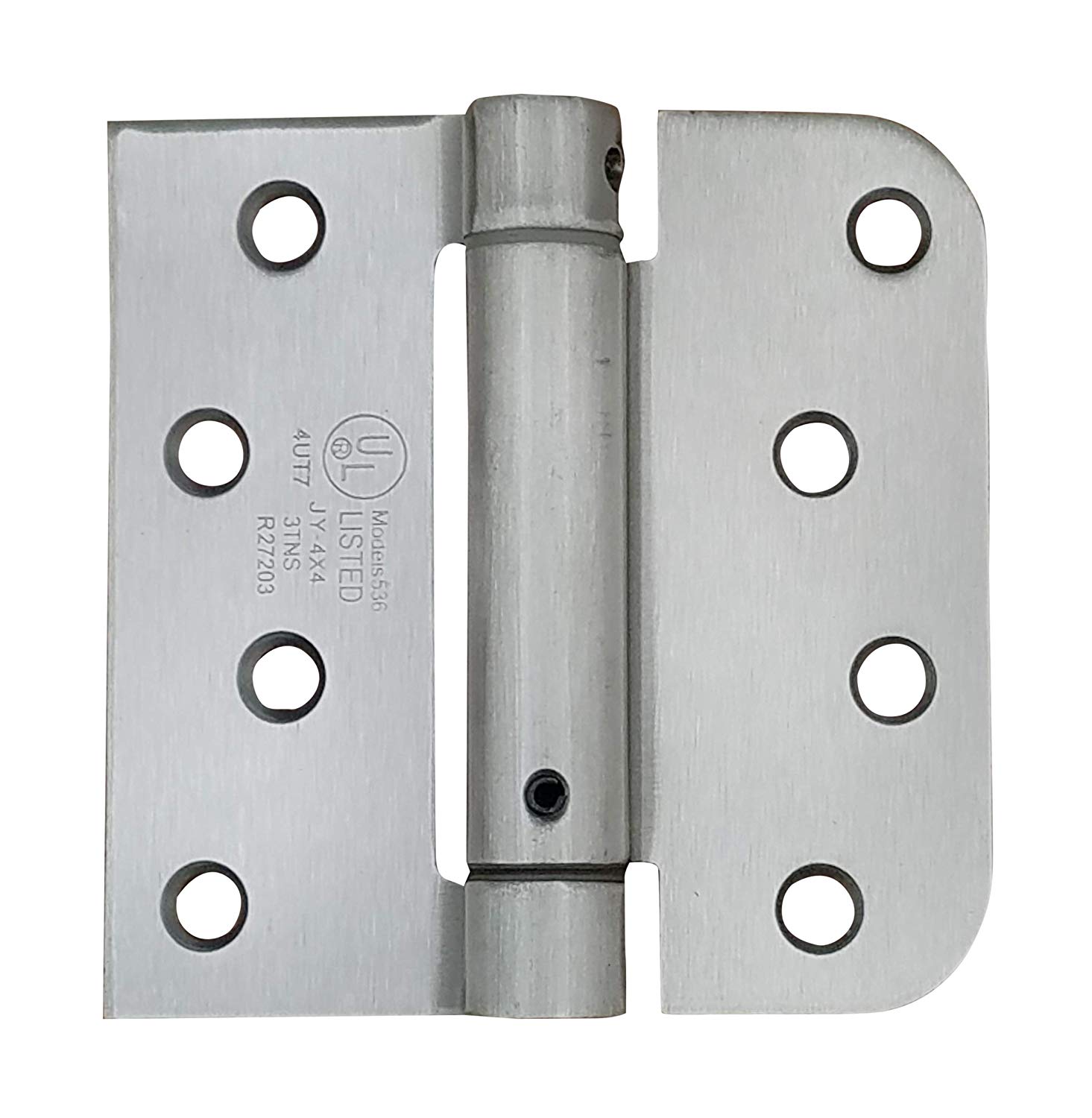

Non-Removable Pins (NRP) and Security Studs

The most critical upgrade addresses the exposed pin. High-security hinges solve this problem with two primary designs.

• Non-Removable Pins (NRP): An NRP hinge features a small set screw along the barrel that prevents the pin from being tapped out. The pin cannot be removed when the door is closed, completely neutralizing the most common hinge-based attack. This design securely encloses the hinge pin, making unauthorized removal nearly impossible.

• Security Studs: Another powerful feature is the security stud. This design incorporates a metal stud on one hinge leaf that interlocks into a hole on the opposite leaf when the door is shut. Even if an intruder manages to cut the hinge pin, these studs function like hidden deadbolts, keeping the door firmly locked to the frame.

These features are essential for any outward-swinging door and provide a robust defense against forced entry.

Heavy-Gauge Steel and Deep Anchoring

A hinge's strength is determined by its material and how it is installed. A true security hinge excels in both areas.

Material and Load CapacityStandard residential hinges often support doors under 200 pounds. In contrast, heavy-duty security hinges are constructed from thick-gauge stainless steel and are built to handle immense force. Some heavy-duty models can support loads from 1,000 pounds to over 13,000 pounds, ensuring they will not bend or break under attack.

This robust construction is only effective when paired with proper installation. A superior security hinge must be anchored correctly. This involves using long, heavy-duty screws (typically 3 inches or longer) that pass through the thin door jamb and secure directly into the solid wood stud of the wall frame. This deep anchoring prevents an intruder from kicking the door and hinge right out of the frame.

Choosing and Installing Your Upgrade

Selecting the right hardware is a crucial step. Homeowners should look for hinges that combine strong materials, tamper-resistant designs, and proper certifications (such as UL, CE, or ANSI) to guarantee performance.

For example, homeowners can choose from different styles to match their needs.

• A heavy-duty butt hinge like the TDC DG001 Stainless Steel Door Hinge offers a classic look with exceptional strength and load capacity, making it ideal for heavy exterior doors.

• For a clean, modern aesthetic, a product like the TDC 3D Adjustable Concealed Hinge ZD001 provides robust security while being completely invisible when the door is closed.

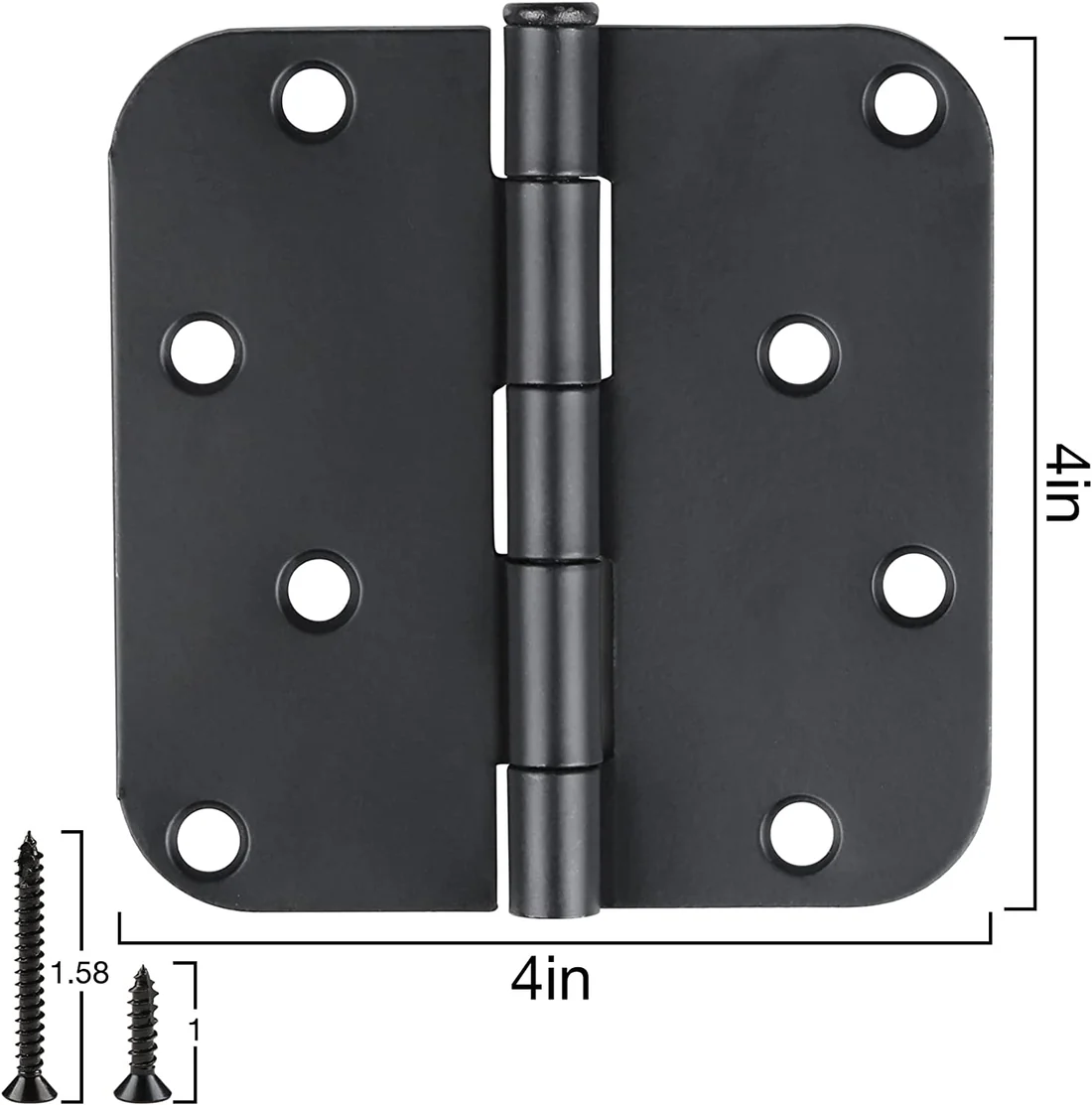

Once you select a hinge, proper measurement ensures a perfect fit. You can measure your existing hinges with a few simple tools: a screwdriver, a tape measure, a dime, and a quarter.

1. Remove the Hinge: Use a Phillips screwdriver to remove an existing hinge from the door and frame.

2. Measure Width and Height: Lay the hinge open on a flat surface. Measure its full width from edge to edge and its height from top to bottom.

3. Determine Corner Radius: Place a dime and a quarter in two different corners of the hinge leaf. The coin that fits the curve best indicates the radius. A dime typically matches a 1/4-inch radius, while a quarter fits a 5/8-inch radius.

Recording these three measurements—height, width, and corner radius—ensures your new hardware will install perfectly, providing a seamless and powerful security upgrade.

Reinforcing doorways delivers a massive return on security. Many homeowners mistakenly believe alarms alone provide sufficient protection. A proper security hinge complements electronic systems, creating a layered defense. Securing the door's physical integrity is the foundational step every modern homeowner must take for true peace of mind.

FAQ

Are security hinges necessary for interior doors?

No, homeowners should focus security hinge installations on exterior doors. These are the primary targets for forced entry. Interior doors do not require this level of reinforcement.

Can I install security hinges myself?

Yes, homeowners with basic tools can typically install security hinges. The process involves removing the old hinge and screwing the new one into place with longer screws.

How many security hinges does one door need?

A standard exterior door requires three security hinges for optimal strength. Heavier doors may need four. Proper spacing ensures the door remains stable and secure against attack.
