You are Choosing Hinges Wrong Find Reliable Door Hinges

The global door hinge market reached USD 9.5 Billion in 2024, highlighting the hardware's importance. A Ball Bearing Hinge is the most dependable choice for a heavy door. A reliable hinges manufacture produces superior models like the 4.5 x 4.5 Ball Bearing Hinge and Full Mortise Hinge. Their internal bearings minimize friction, ensuring these reliable door hinges provide smooth, sag-free operation for years.

Why Your Standard Hinges Are Failing

Standard hinges often fail under the stress of heavy or high-traffic doors, leading to noticeable and damaging problems. Homeowners may observe these issues without realizing the hinges are the root cause. Understanding these failure signs is the first step toward a solution.

The Problem of Door Sag

A sagging door is a primary indicator of hinge failure. This issue often arises when hinges cannot support the door's weight, a common result of using underrated residential-grade hinges on heav

y doors. Over time, the constant strain causes the top hinge to bend or pull away from the frame. This initial sag leads to more severe structural problems, including:

·Distorted Door Frames: The frame becomes out of square, making the door difficult to close.

·Stress Cracks: Cracks may appear in the drywall above the door corners.

·Uneven Gaps: Large gaps can form between the door and the frame.

Binding, Sticking, and Scraping

Those creaking and grinding sounds are not just annoying; they signal serious hinge stress. Loose or bent hinges cause door misalignment, leading to binding against the frame or scraping on the floor. Heavy use and a lack of lubrication accelerate this wear and tear.

Pro Tip: Check for hinge movement to diagnose the problem. While lifting the doorknob, push the top of the door toward the jamb. If the top hinge moves, its screws are loose. This simple test helps identify the source of binding.

When Screws Pull Out of the Frame

Eventually, the constant stress pulls the hinge screws directly from the door frame. This represents a complete failure of the hinge's mounting. At this stage, the door becomes difficult to operate and insecure. Fixing this requires more than just longer screws. A proper repair involves drilling out the stripped holes, inserting glued wooden dowels, and then creating new pilot holes for a secure fit. Investing in reliable door hinges from the start prevents this extensive damage.

Top 5 Reliable Door Hinges for Heavy Doors

Selecting the right hinge is crucial for ensuring the long-term performance and safety of a heavy door. Standard hinges are not designed to handle the significant weight and frequent use associated with solid core, oversized, or commercial doors. The following five types of hinges offer the strength and durability needed for these demanding applications.

1. Heavy-Duty Ball Bearing Hinges

Heavy-duty ball bearing hinges are the premier choice for smooth, effortless door operation. These hinges contain small, lubricated ball bearings between the hinge knuckles. The bearings dramatically reduce friction, allowing even the heaviest doors to swing open and shut with minimal effort. This design prevents the metal-on-metal grinding that wears down standard hinges and leads to sagging.

A superior model like the 4.5 x 4.5 Ball Bearing Hinge provides exceptional durability for both residential and commercial settings. The internal bearings carry the vertical load of the door, ensuring longevity and preventing premature failure. Many top manufacturers produce these reliable door hinges, offering certified performance for various applications.

·ASSA ABLOY (Sweden): A global leader providing Grade 11 and Grade 13 ball bearing hinges for high-performance needs.

·DORMAKABA (Switzerland): Offers stainless steel hinges where all flat hinge ball bearing versions feature four bearings for enhanced support.

·Häfele (Germany): Supplies a wide range of ball bearing hinges suitable for both residential and commercial projects.

·SIMONSWERK (Germany): Manufactures the VARIANT series, engineered to withstand heavy loads on both residential and heavy-duty doors.

2. Continuous (Piano) Hinges

A continuous hinge, also known as a piano hinge, runs the full length of the door. This design distributes the door's weight evenly along the entire height of the door and frame. This even distribution eliminates the stress points found on traditional butt hinges, making it an excellent solution for very heavy, tall, or high-traffic doors.

Continuous hinges are frequently used in commercial environments like hospitals, schools, and industrial facilities where doors endure constant use.

Key Benefits of Continuous Hinges:

·Ultimate Support: The full-length design prevents door sag by providing consistent support from top to bottom.

·Increased Security: With no gaps between the door and frame, these hinges make it extremely difficult for anyone to pry the door open, enhancing security.

·Smooth, Silent Operation: The even pivot action ensures a smooth, quiet swing, reducing the noise often associated with conventional hinges.

·Extended Lifespan: By minimizing wear and tear on the door and frame, continuous hinges have a much longer service life than traditional butt hinges.

3. Modern Pivot Hinges

Pivot hinges offer a unique and contemporary alternative for supporting heavy doors. Instead of mounting to the side of the door and frame, pivot hinges are installed at the top and bottom of the door. This allows the door to swing on a point, creating a visually striking floating effect. Because the weight is borne by the floor, pivot systems can handle exceptionally heavy and oversized doors with ease.

There are two primary types of pivot hinges, each with distinct installation requirements and functions.

Installation requires precision, including cutting recesses (mortising) into the door and frame. For doors over 150 lbs, installers often use intermediate pivots to provide extra support and prevent warping.

4. Thick Gauge Butt Hinges

For many applications, a traditional butt hinge remains a practical choice, provided it is properly specified. The thickness of a hinge's leaves, known as its gauge, directly correlates to its load-bearing capacity. Thicker metal provides greater strength and resistance to bending under the door's weight.

Commercial-grade butt hinges are manufactured to meet specific performance standards. For example, a Full Mortise Hinge with a gauge of 0.180 inches meets ANSI/BHMA A156.1 Grade 1 standards. This certification indicates the hinge has been cycle-tested for heavy traffic and is strong enough for large commercial doors. When selecting a butt hinge for a heavy door, always choose a thick gauge model from a reputable manufacturer to ensure safety and durability.

5. Heavy-Duty Spring Hinges

Heavy-duty spring hinges, also called self-closing hinges, are essential for doors that must remain closed for security or fire safety. A spring mechanism inside the hinge barrel automatically closes the door after it has been opened. The tension of the spring is adjustable, allowing users to control the closing speed and force.

For fire-rated doors, these hinges are not just a convenience—they are a requirement. They must meet strict safety codes to ensure fire and smoke containment.

·Fire Rating: Look for hinges that are UL/cUL Listed for use on fire doors.

·Certification: Hinges should meet ANSI/BHMA A156.17 standards for self-closing hinges.

·Installation: For fire door applications, building codes often require at least two spring hinges to ensure reliable closing.

Using heavy-duty spring hinges provides both safety and convenience, making them a smart investment for commercial buildings and multi-family residences.

Our Top Hinge Recommendations

Navigating the options for heavy-duty hardware can be challenging. This guide simplifies the process by highlighting top-tier hinges for specific applications. Each recommendation focuses on a distinct need, from effortless operation to uncompromising security and modern aesthetics. Making an informed choice ensures your door functions perfectly for its intended purpose.

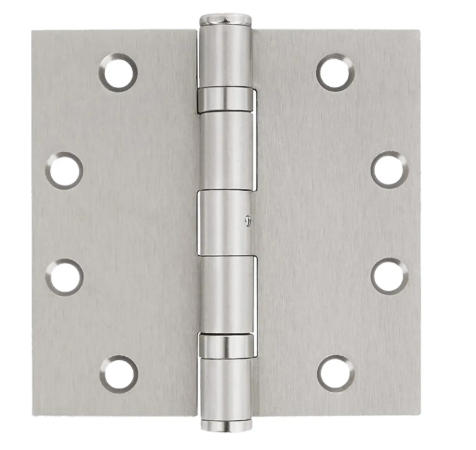

For Ultimate Smoothness: 4.5 x 4.5 Ball Bearing Hinge

For applications demanding the smoothest, quietest door swing, the 4.5 x 4.5 Ball Bearing Hinge is the undisputed leader. Its design incorporates lubricated ball bearings between the hinge knuckles. These bearings carry the full vertical load of the door. This mechanism minimizes friction, allowing massive, solid-core doors to glide open and closed with minimal effort. The reduction in metal-on-metal wear prevents the grinding and squeaking common with standard hinges and significantly extends the hardware's lifespan. These reliable door hinges are a sound investment for high-traffic residential and commercial entryways.

Note: The 4.5 x 4.5 inch size is a versatile standard for many commercial and heavy residential doors, offering a perfect balance of strength and compatibility.

Several reputable manufacturers produce high-quality steel ball bearing hinges. Homeowners and contractors can find excellent options from brands such as:

·Commando

·Best (formerly Stanley)

·Hager

·Trudoor

·McKinney

·Ives

For Commercial Security: Full Mortise Hinge

Security and durability are paramount in commercial settings. The heavy-weight Full Mortise Hinge is engineered to meet these demands. Its thick gauge steel construction provides immense strength, resisting tampering and withstanding the rigors of high-frequency use. When properly installed, these hinges create a formidable barrier, making them an essential component for securing exterior doors, utility rooms, and other sensitive areas.

Proper installation is critical for performance. Installers must follow a precise sequence to ensure the door hangs correctly and operates freely.

Installation Steps for Heavy Steel Doors:

1.Locate the top of the door. The top hinge location on the door is set 1/8″ lower than the frame's hinge prep for clearance.

2.Clear all screw holes and reinforcements in the door and frame of debris.

3.Remove any excess grout, paint, or weld splatter from the hinge reinforcement area.

4.Use a tap to clean the threads in any obstructed screw holes.

5.Verify the hinge weight (standard vs. heavy-weight) against the hardware schedule.

6.Check the manufacturer's guidelines for any required hinge reinforcement modifications for heavy-weight models.

7.Install handing plates or filler plates between the hinge and the door reinforcement if needed.

8.Ensure the hinge and any plates sit flush with the door edge after installation.

9.Position the door in the opening, using a wedge for support.

10.Align the door's top hinge with the frame's top hinge cutout. Install the top hinge first to support the door's weight.

11.Install the middle and bottom hinges using the manufacturer-provided machine screws.

12.Remove the support wedge from under the door.

13.Close the door and check for proper clearances, ensuring it swings without obstruction.

For Modern Design: Pivot Hinge Systems

Designers and architects favor pivot hinge systems for creating clean, contemporary entrances. Unlike traditional side-mounted hinges, a pivot hinge is installed at the top and bottom of the door. This configuration allows the door to swing on a central or offset axis, creating a dramatic, floating appearance.

The system's primary advantage is its ability to support exceptionally large and heavy doors. The floor-mounted pivot bears the entire weight, relieving stress on the door frame. This makes pivot hinges the ideal solution for oversized glass, wood, or metal doors that would overwhelm conventional hardware. The result is a functional work of art that combines minimalist design with robust engineering, making it a premier choice for modern luxury homes and high-end commercial spaces. These systems offer a unique way to achieve a grand and seamless entryway.

How to Choose the Right Heavy-Duty Hinge

Selecting the correct hardware involves more than just aesthetics. A professional approach considers the door's physical properties to ensure safety and longevity. Following a systematic process helps users find the perfect hinge for any heavy door application.

Match the Hinge to Your Door's Weight

The first step is to determine the door's total weight. A door's material significantly impacts its weight. For example, steel doors made from 24-gauge steel weigh approximately 1.15 pounds per square foot. After finding the door's weight, installers adjust this number for usage frequency and the presence of a door closer. A final safety margin of 20% is added to account for dynamic forces. This calculation ensures the chosen hinge can handle the operational load without failing.

Pick the Right Material

The hinge material must suit the door's environment. Stainless steel offers excellent strength and affordability, while brass provides a classic aesthetic with high corrosion resistance. For exterior doors, especially in coastal areas with salty air, marine-grade 316 stainless steel is the top choice for its superior ability to prevent rust.

Get the Correct Hinge Size

Hinge size must correspond to the door's thickness and width. Using a hinge that is too small will cause it to fail under the door's weight. Standard residential doors often use 3.5 x 3.5-inch hinges, but heavier or wider doors require larger sizes. The chart below provides a clear guide for selecting the appropriate hinge height based on common door dimensions. Choosing the right size is fundamental to installing reliable door hinges.

Decide on the Number of Hinges

The number of hinges needed depends on the door's height. A greater height requires more hinges to distribute the weight evenly and prevent warping.

General Hinge Guidelines:

·Doors up to 60 inches tall need two hinges.

·Doors between 60 and 90 inches tall need three hinges.

·Doors between 90 and 120 inches tall need four hinges.

Following these standards ensures the door remains stable and operates smoothly for years.

Choosing the right hinge is a critical investment in a door's safety and longevity. Premium heavy-duty hinges extend the door's lifespan and reduce long-term maintenance costs. By matching the hinge's material, weight rating, and quantity to the door's specifications, users prevent sagging and ensure smooth, dependable operation for years.

FAQ

What is the best hinge for a heavy door?

A heavy-duty ball bearing hinge is the best choice. Models like the 4.5 x 4.5 Ball Bearing Hinge use internal bearings to ensure smooth operation and prevent door sag.

How many hinges does a heavy door need?

Most doors up to 90 inches tall require three hinges. Installers should use four hinges for doors between 90 and 120 inches to ensure proper support and stability.

Can you put 4 hinges on a door?

Yes, using four hinges is recommended for very tall or heavy doors. This practice distributes the door's weight evenly, prevents warping, and increases the door system's overall longevity.
